Motion made easy

Thanos Motion Controller

Next Gen controller, for your next motion project.
Motion Future is now!

From 349 USD

Buy now

Tech Spec

Futureproof

Use a controller that will last with your future projects!
Your Rig is evolving, your controller is following.

Compatibility

Thanos controller is compatible with many type of actuators and major Motion Software on the market!

Rethink motion

Motion controller; improved.

Why be locked with one software, one actuator type or one brand?
Thanos controller was made to overcome this situation and allow you
to upgrade your rig and use the hardware and motion software you
want.

Quality first

Designed by Thanos in the US

Quality and sustainability has always been in mind when developing this motion controller.
We want you to get the best for your rig, and that it will endure.

Get your controller now

Simple to use, YET beautiful

Thanks to the RGB LCD menu

Less than 5 minutes of settings and you're good to go! Just select your actuator specifications, some security settings and that's it.

Add some bling to your set-up with the customizable RGB screen color. Choose from presets or custom colors to suit your design.

Get quick visual confirmation for the controller state by looking at the color changing RGB LCD display. It will turn Green when online in game, blink Blue for spike filter trip, or Red if the E-stop switch is engaged.

Custom color

Unit Tracker

Into the wild

Since launch date of the new Thanos AMC controller, the number of users accross the world is
growing everyday.

Join the future of motion!

100%

Satisfied

30+

Countries over the world

1500+

Users

Technical

Specifications

Here is a brief overview of what you can expect from your Thanos Motion Controller.
If you have a specific project and need compatibility confirmation; feel free to ask us!

GENERAL

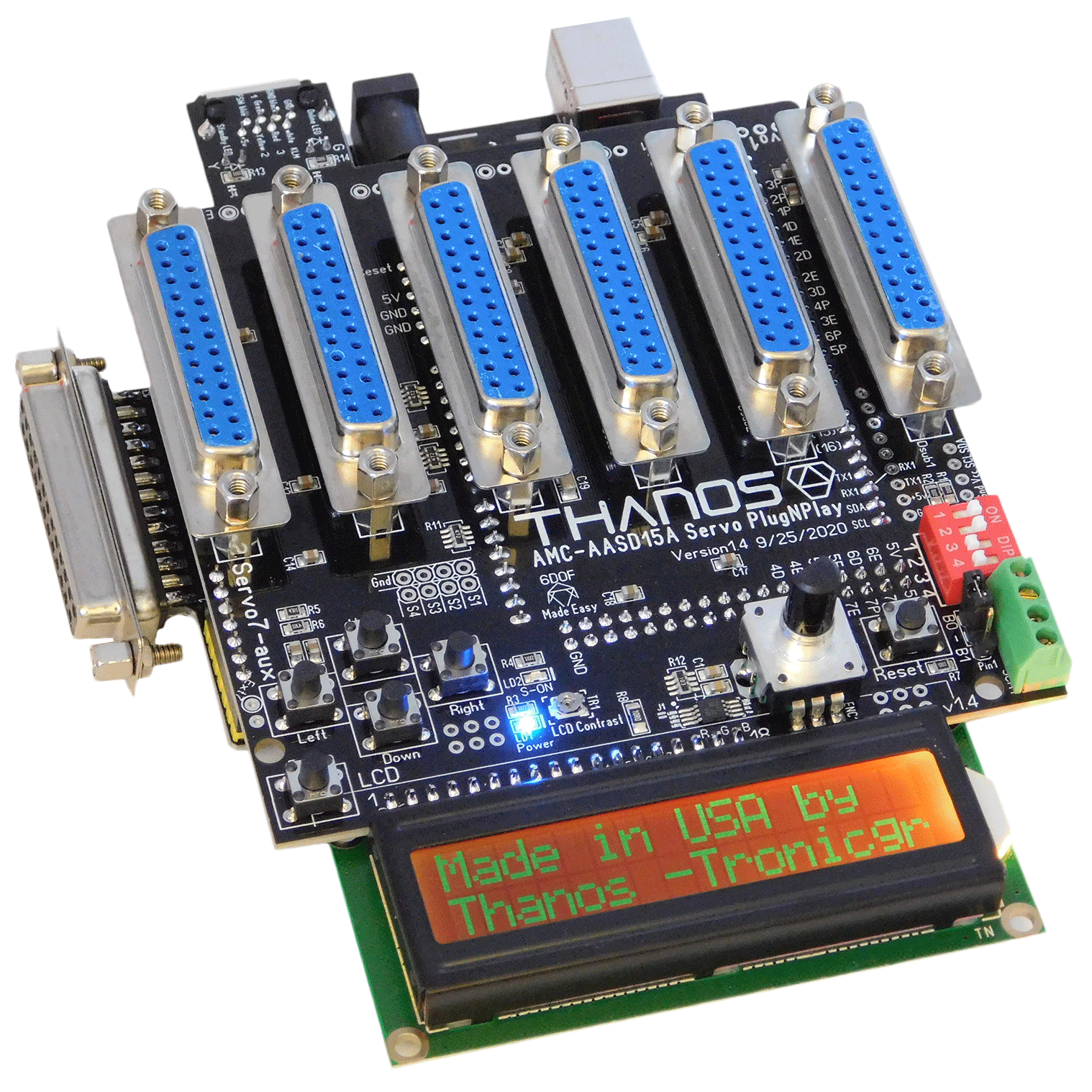

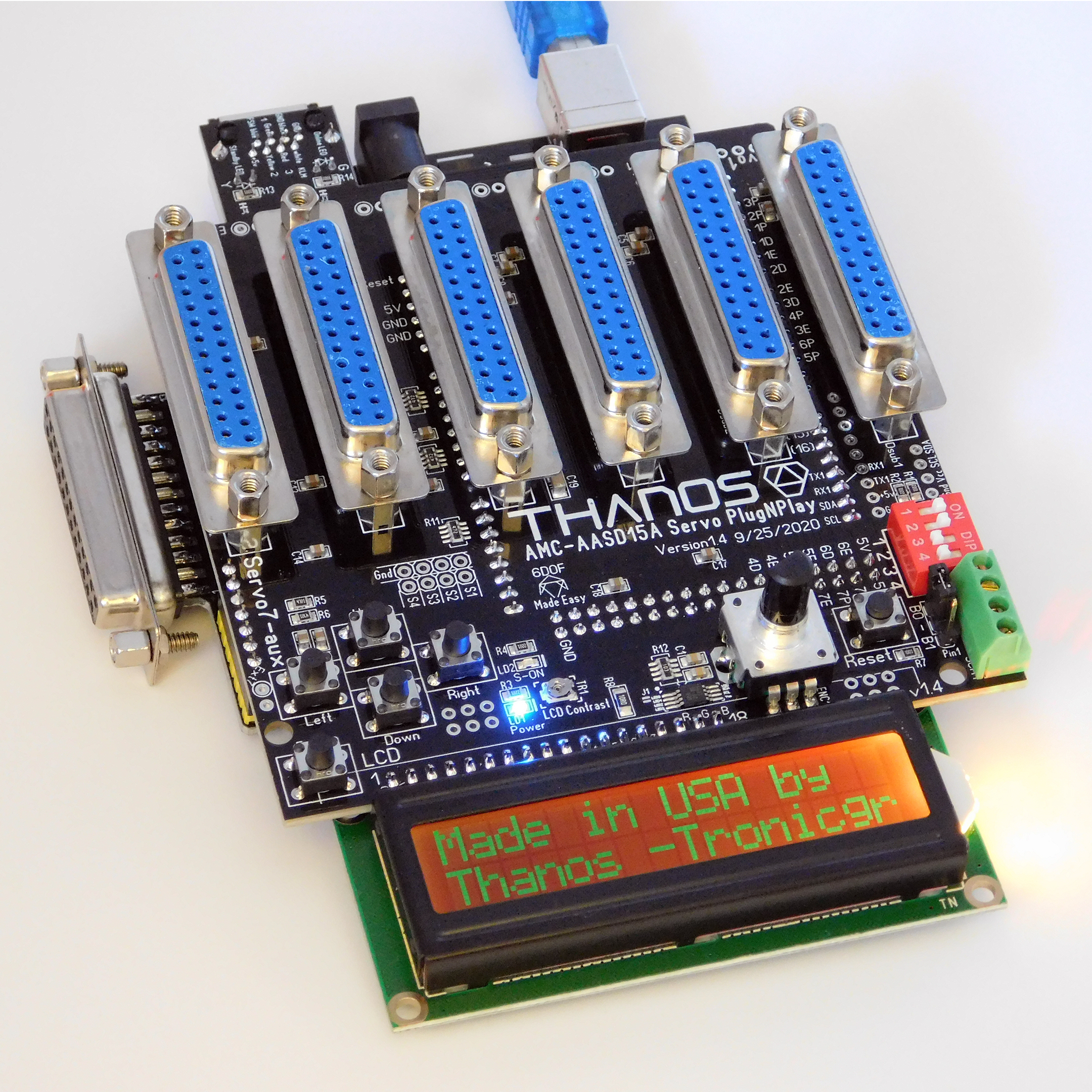

  • Model: AMC AASD15A - RGB V1.4
  • Power: USB powered
  • Color: Black PCB
  • Feature: RGB Screen, RJ45 accessory port, 7th servo Aux Board.

COMPATIBILITY

  • Motors/Actuators: Linear and rotary type
  • Servo Drives : AASD15A, Syntron HS, Dorma M1
  • Software : Sim Racing Studio, FlyPT Mover, Simtools, Ian's 6DOF BFF, etc...
    Open to any developer.
  • Rig type : 2DOF, 3DOF, 4DOF, 5DOF, 6DOF independent / Stewart Hexapod, Belt tensioner/TL/Surge options.

DIMENSIONS

  • Product weight: 0.500 kg
  • Product size : 16 x 12.00 x 3.00 cm

TECHNICAL SPECS

  • Fully detailed LCD menu system (RGB screen)
  • Supports up to 7 servos
  • Automatic Home calibration on power up or re-connection without limit switches
  • Automatic motion between Park position and Standby position and Online positions with adjustable timeout timers and speeds.
  • Protection from exceeding physical limits of the actuator
  • Optional Platform Health check, to ensure all actuators are active during gaming
  • Adjustable stroke up to 2540mm
  • Adjustable screw lead Pitch, 4mm, 5mm, 10mm or 25mm advance per revolution
  • Adjustable direction for Inline or Foldback placement of servomotor
  • Optional selection of belt reduction ratios (1:1, 1:1.5, 1:2) for foldback actuators.
  • Support for rotary actuators
  • 200kHz pulse rate for positioning
  • Latency as low as 1ms in SRS, FlyPT Mover and Simtools
  • E-stop, Park/Standby, Force Offline buttons and LED indicators
  • Remote parameters via PC software interface
  • Rolling Average Filter for anti-vibration pulses on the servomotor
  • Spike Filter to automatically eliminate jolts during crashes or unwanted motion cues

USB Powered

No need for external power source

RJ45 Accessory Port

Allow you to connect an external controler and state LED's

Integrated Security

Auto Calibration, Spike Filter and Stroke safety limit

Quality

Made with quality components from reputable brands

Customize

Set your controller to suit your needs and hardware

reviews

What users say

Don't just take our word for it. Hear what Thanos users have to say!

The easiest and most complete motion controller I have been given to test so far.
Team is always prompt to help through their Discord group.

Barry Rowland

Sim Racing Garage

Best purchase I’ve made in years! Everything from build quality to support and firmware upgrades from the Thanos team and their community has been amazing.

Peacemaker Motion Sim

Aussie Racer

Simple to purchase, simple to hook up, and simple to use. Plenty of versatility to fit any sim, even those with seven channels.
Thanks guys !

Jeff Gorjans

Serious Sim Racer

Team was incredibly quick to respond to my questions, and shipment happened within 48 hours! Great custom work by these guys – highly recommended.

Mike Jeffries

Sim Racing Garage

Alternative Vendors

For International customers in Asia and South America were we don’t ship directly, you can choose to purchase from PT-Actuator:

http://www.pt-actuator.com/products/p5/



Or you can try other vendors from the links on our webpage here:

https://www.thanos-motion.com/links-and-vendors



Another way would be using a Shipping Forwarding Service like Shipito: https://www.shipito.com/en/

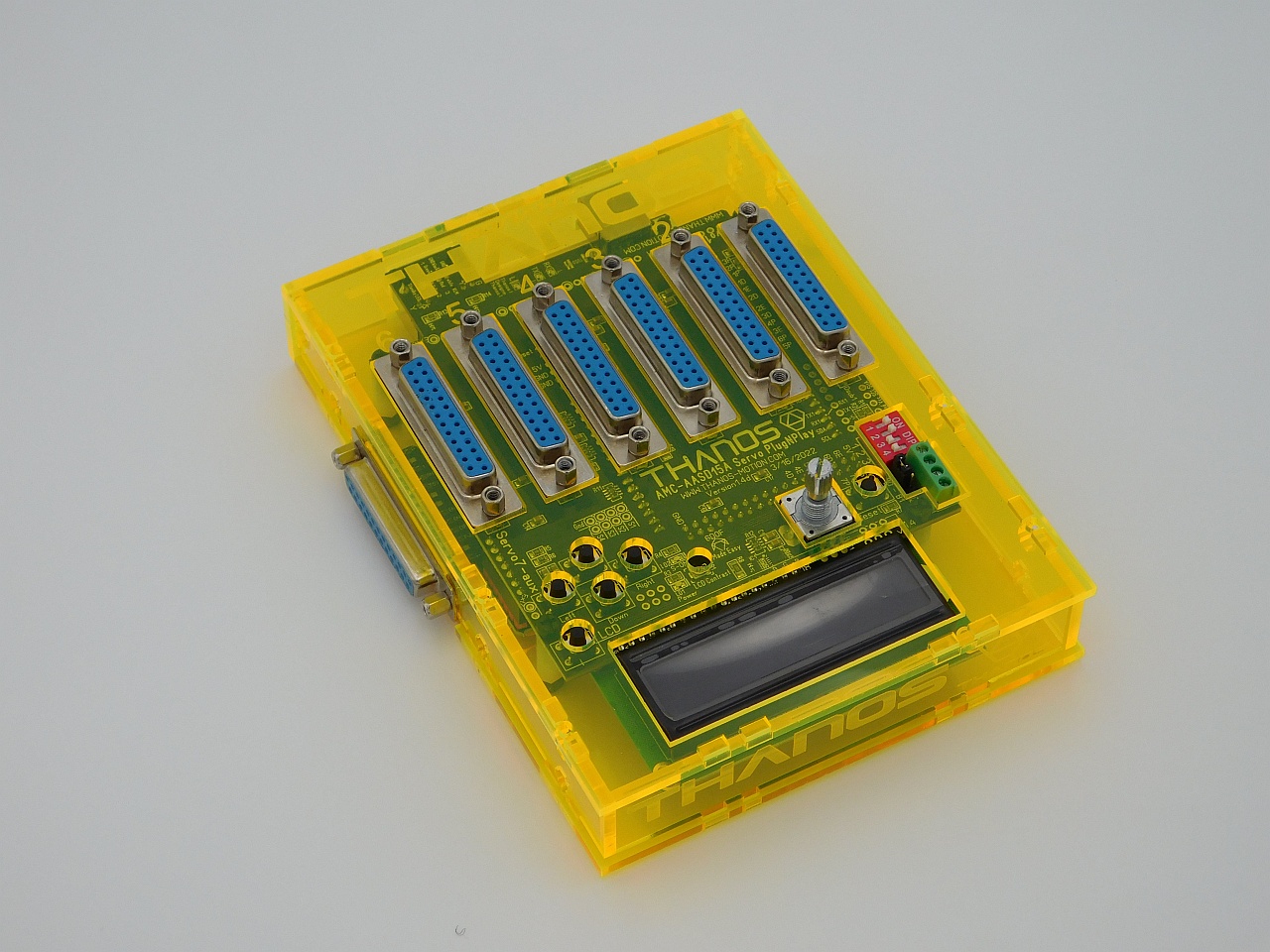

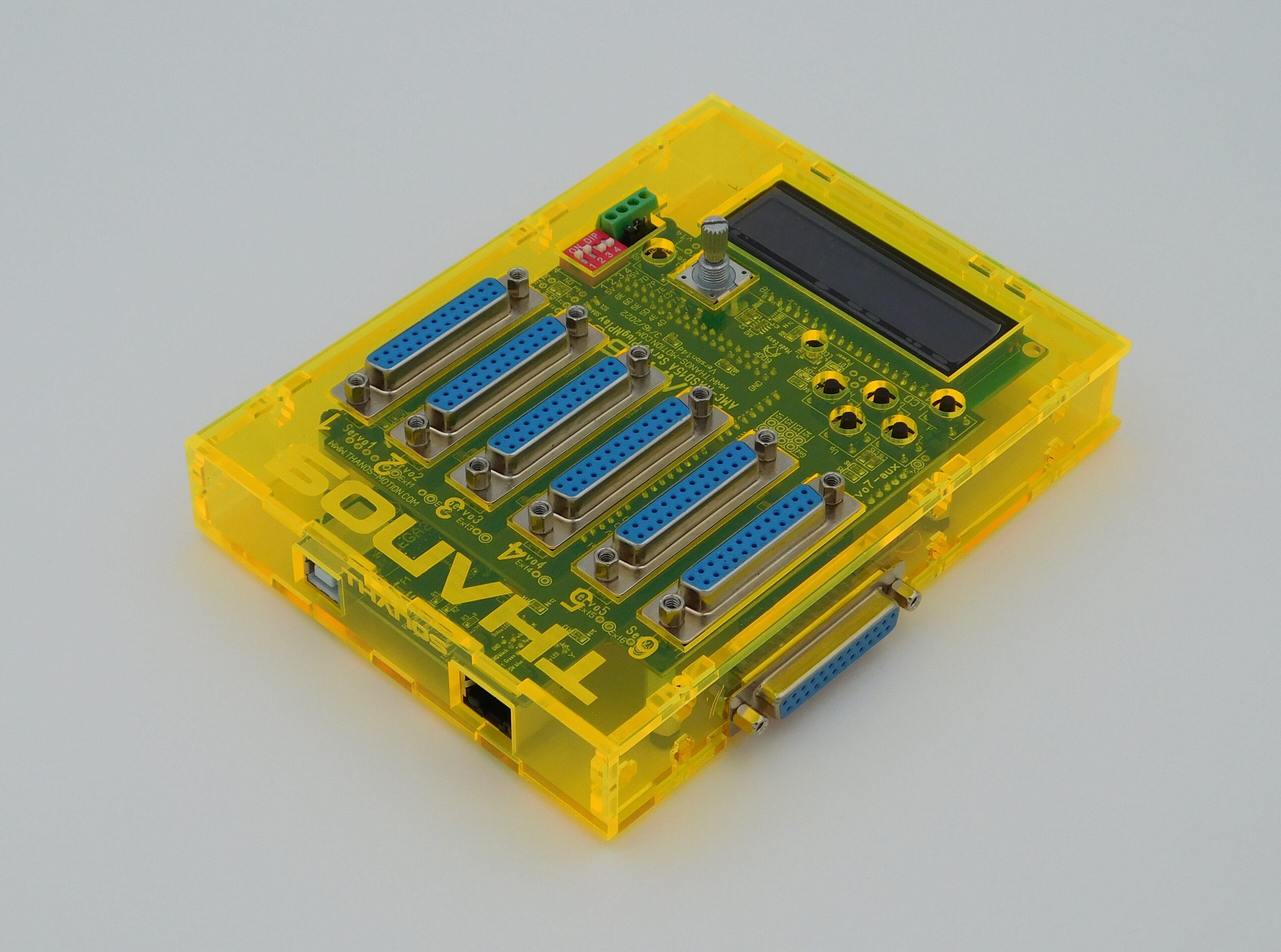

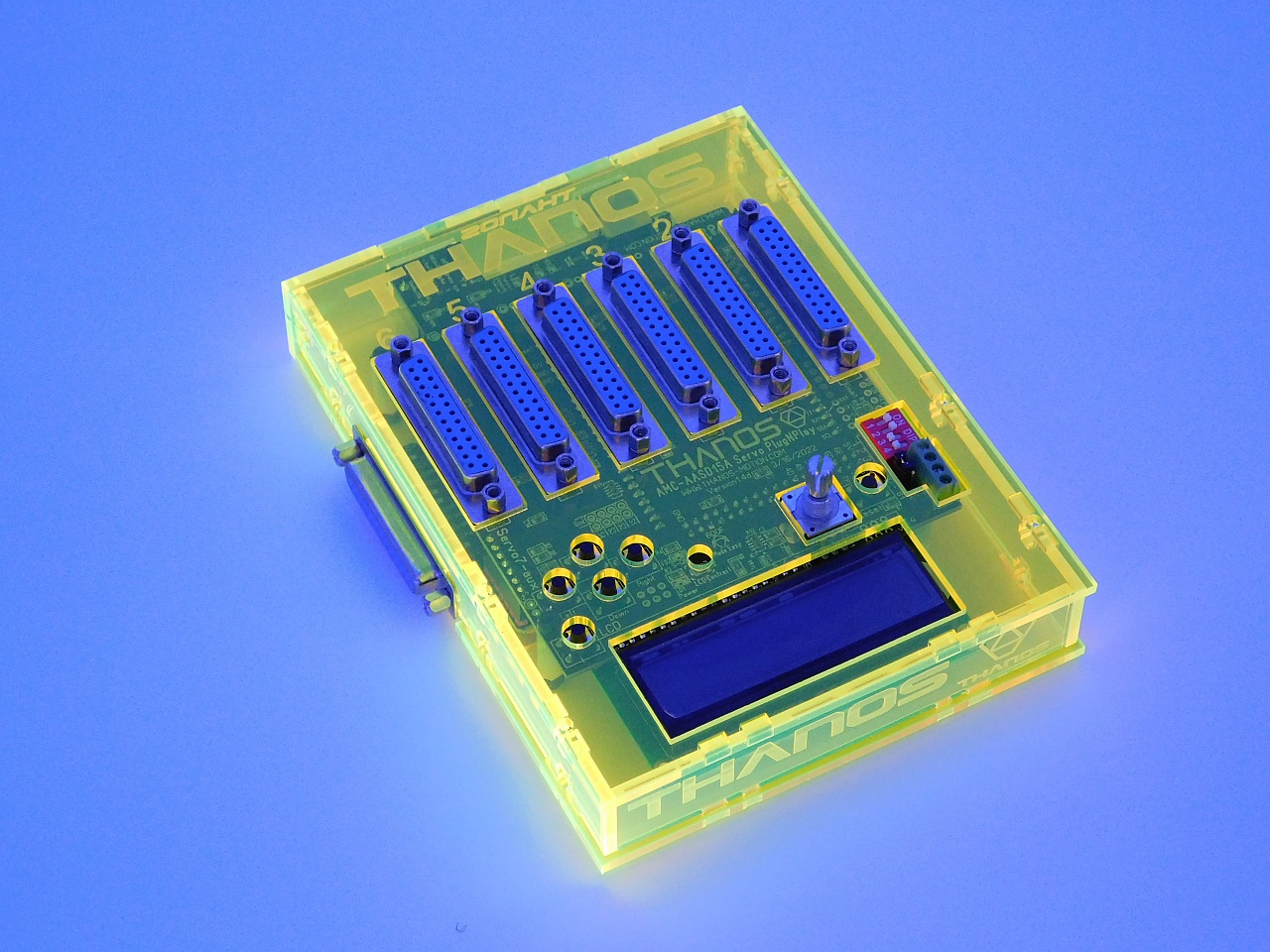

Thanos AMC Controller – RGB (V1.4)

$349.00$429.00

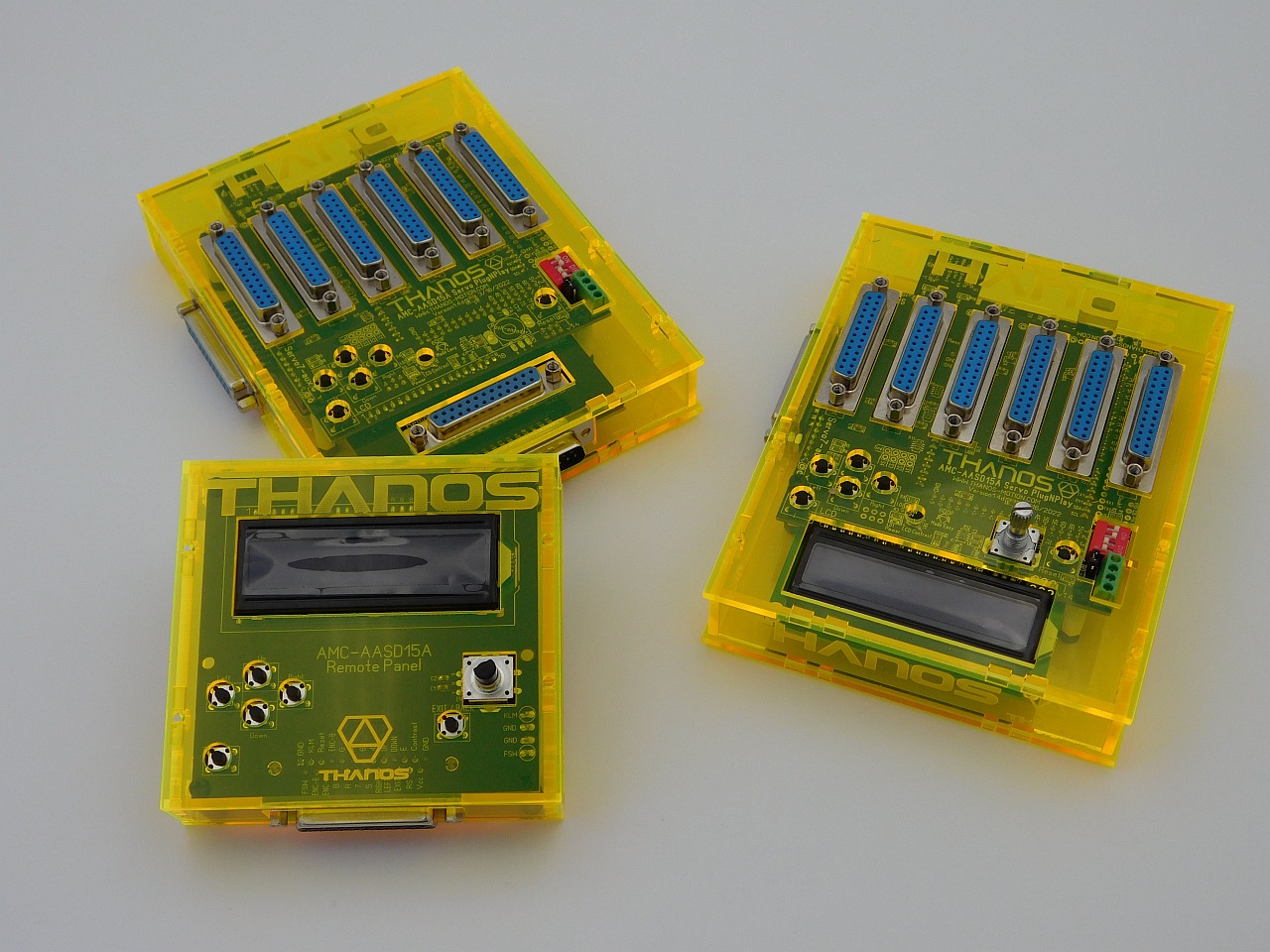

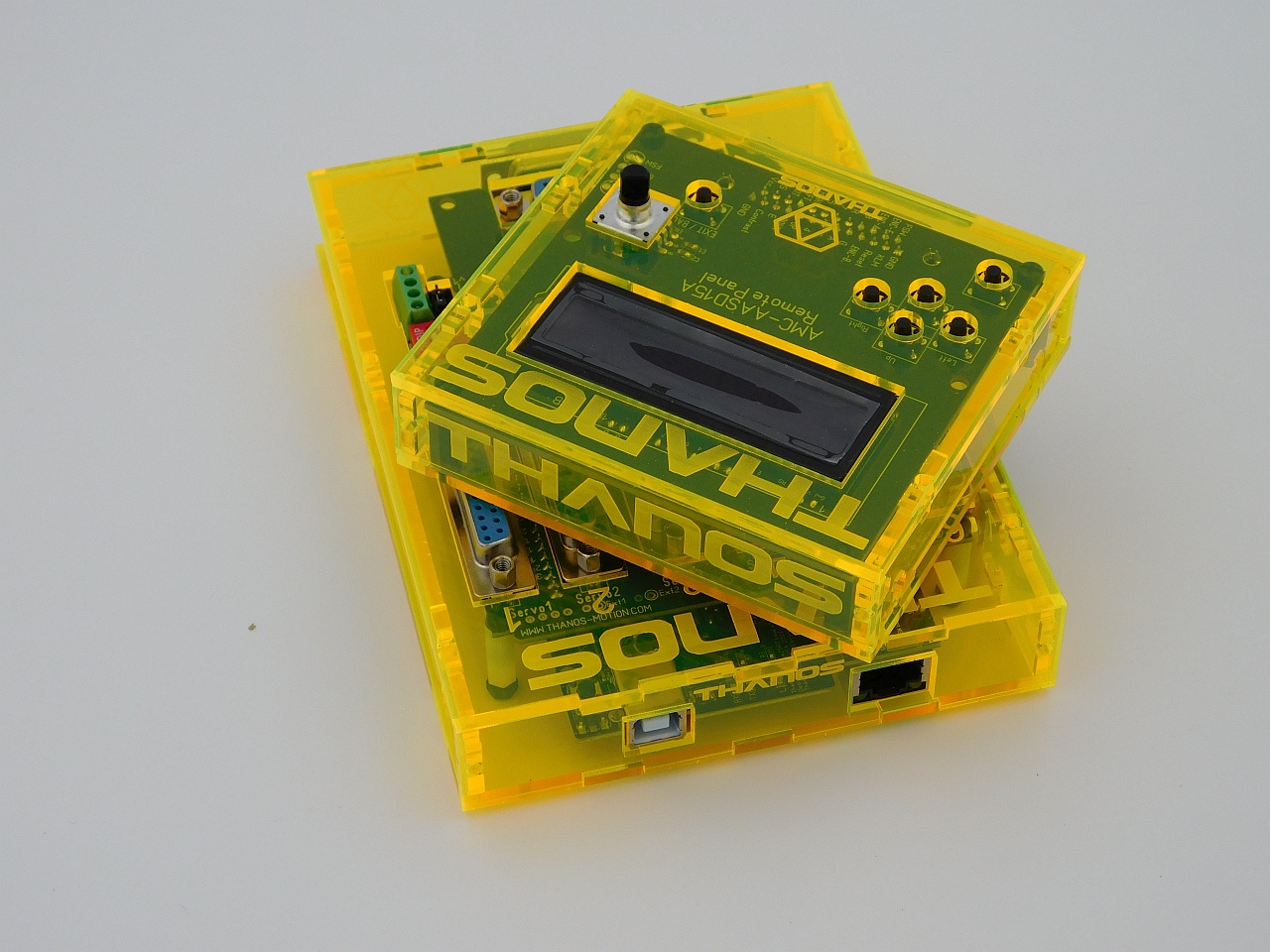

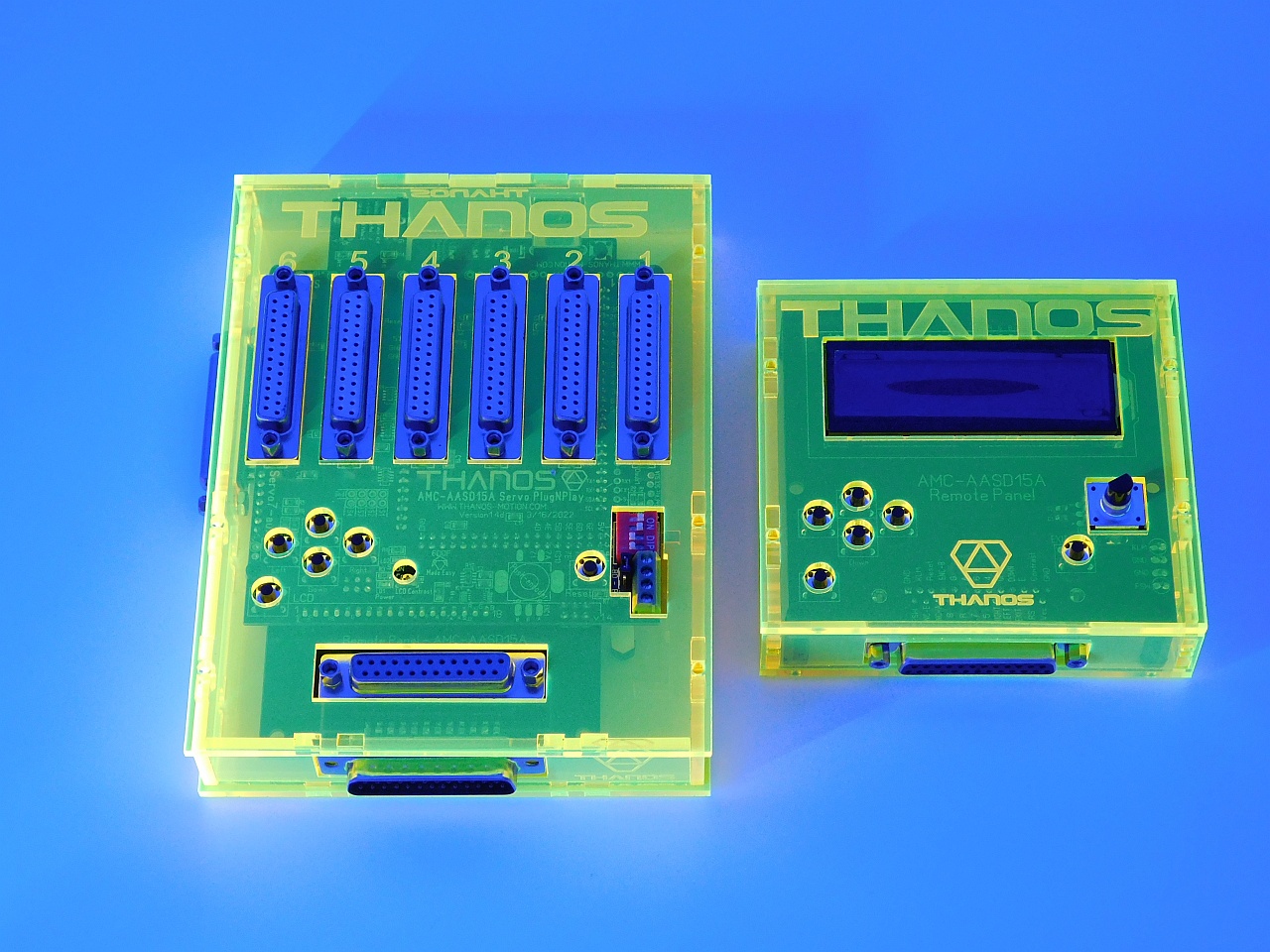

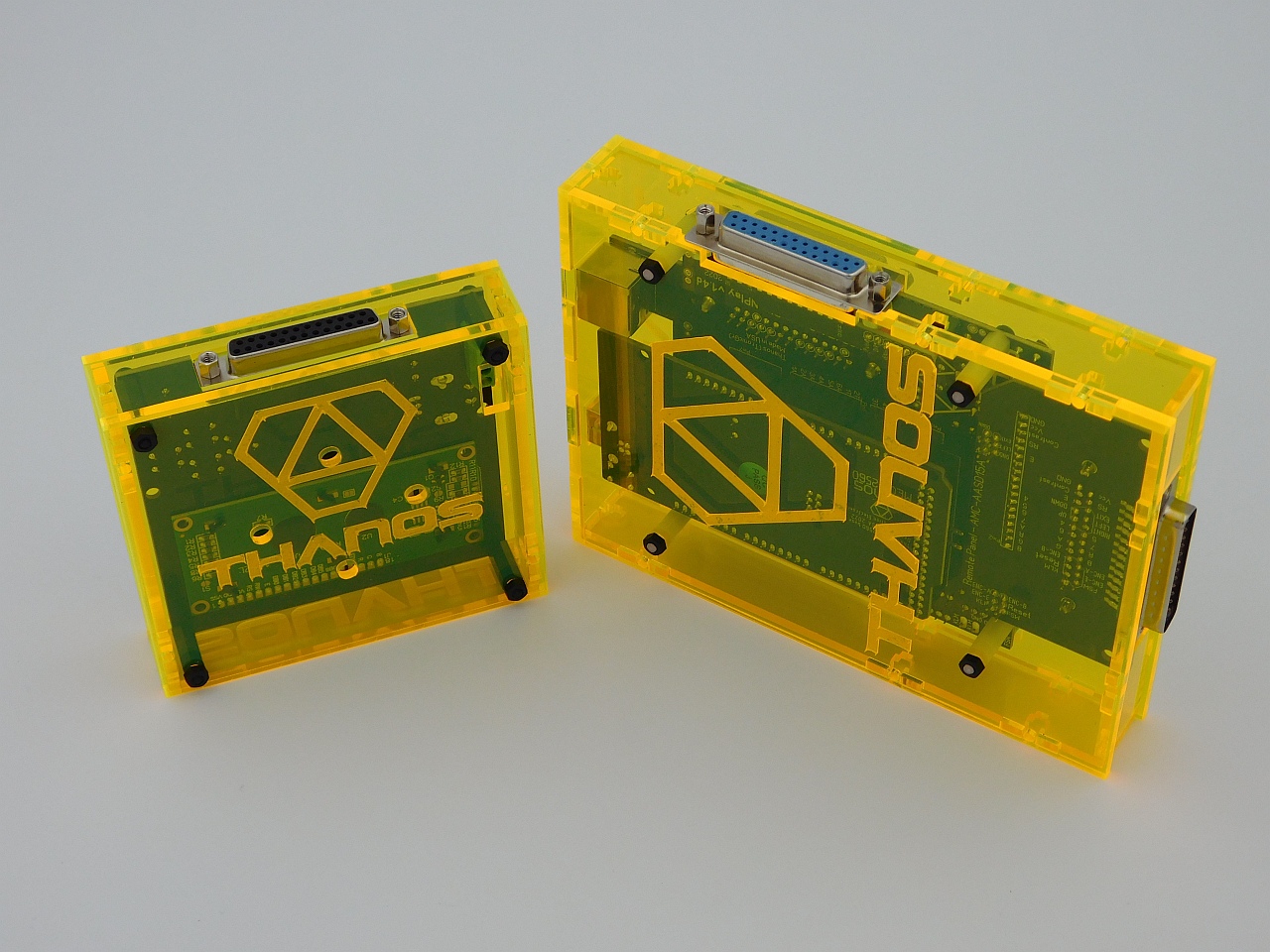

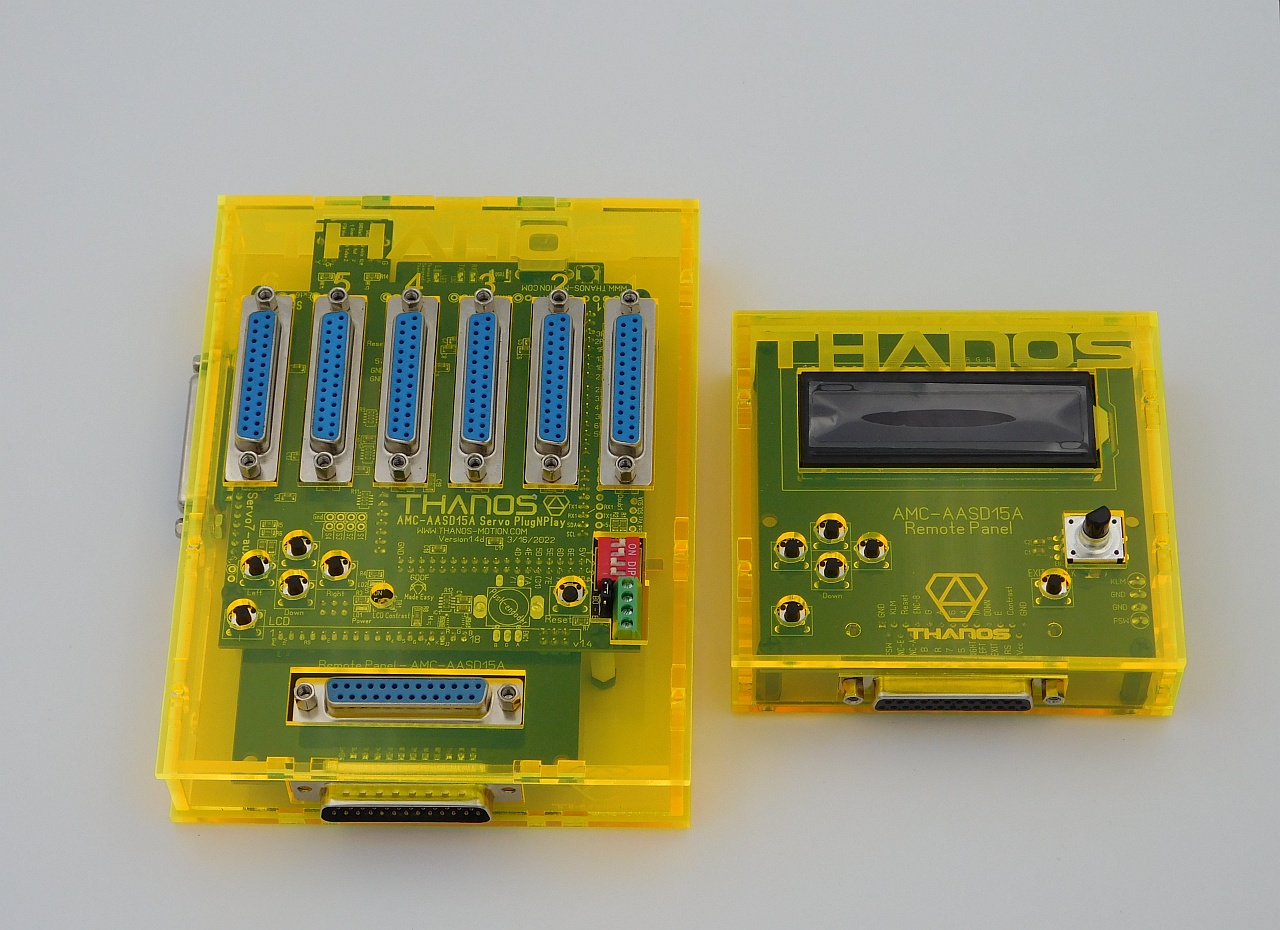

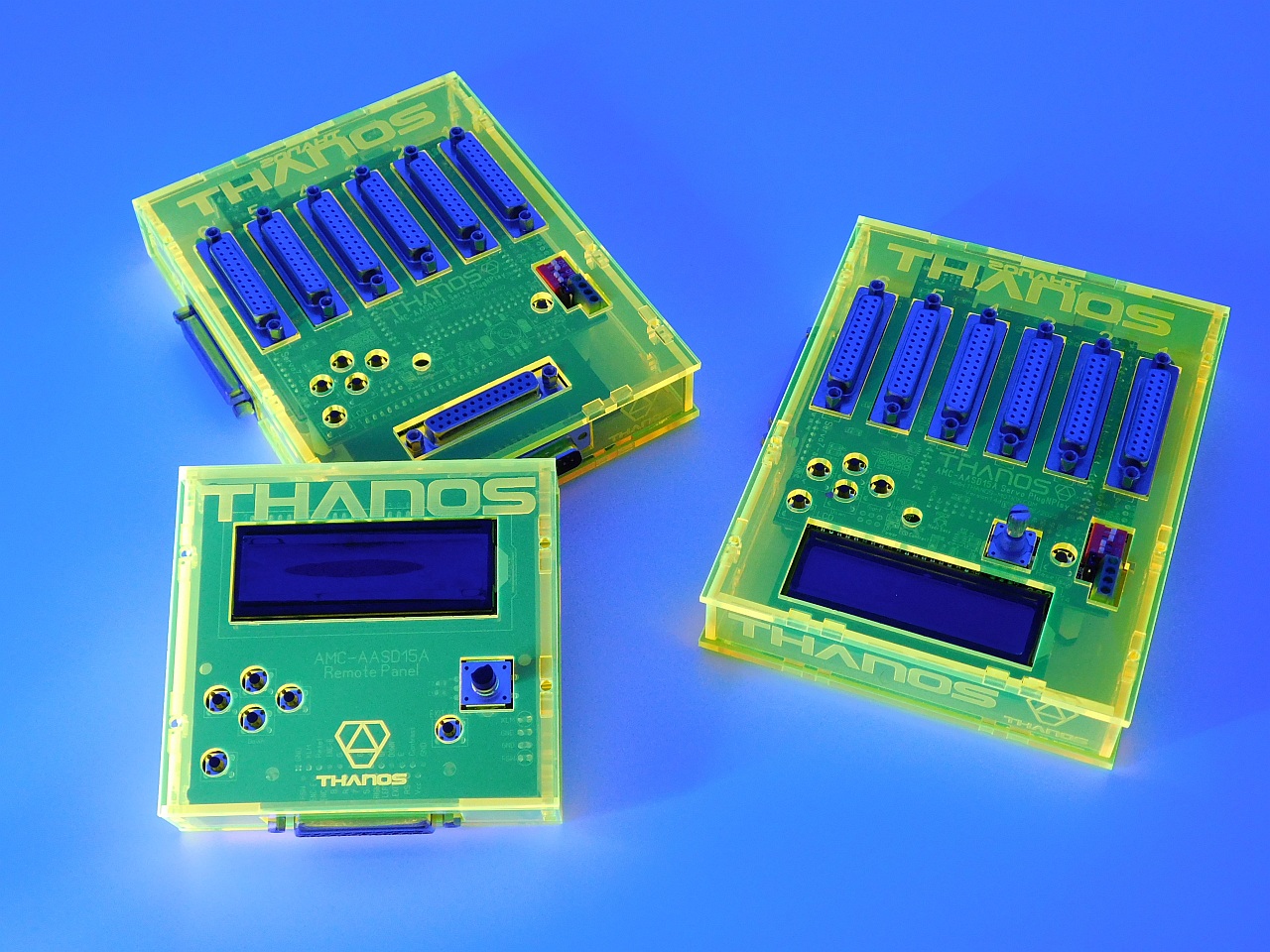

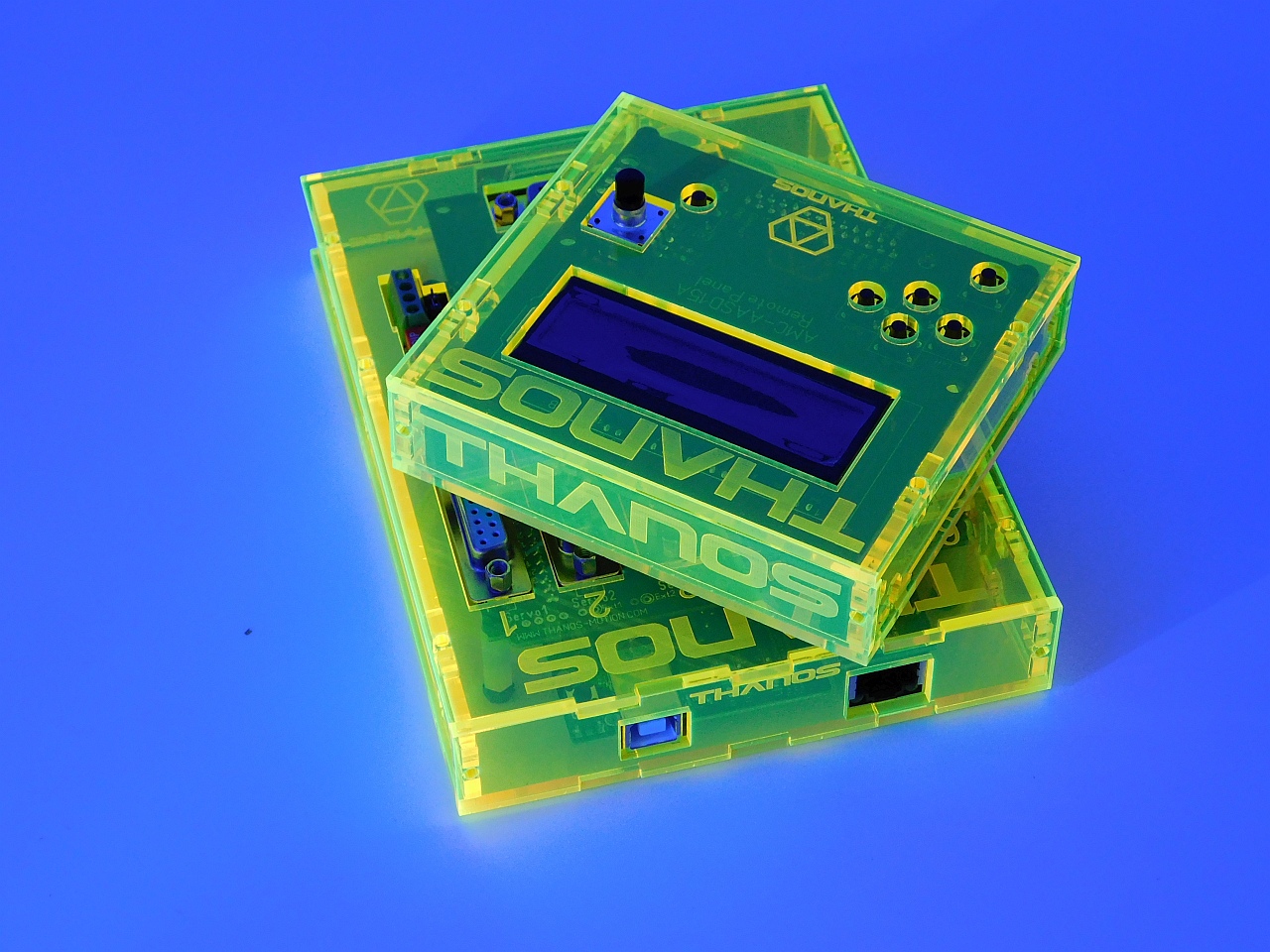

You can choose from Regular fixed screen version or "Remote" screen and controls version to fit your different projects or needs. (DB25 cable not included)

Delivered with an extension board to add a 7th Actuator connector to fit larger motion projects

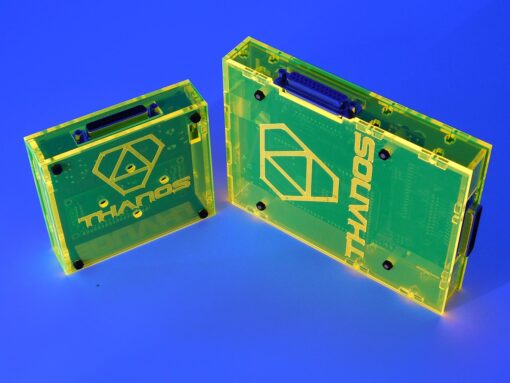

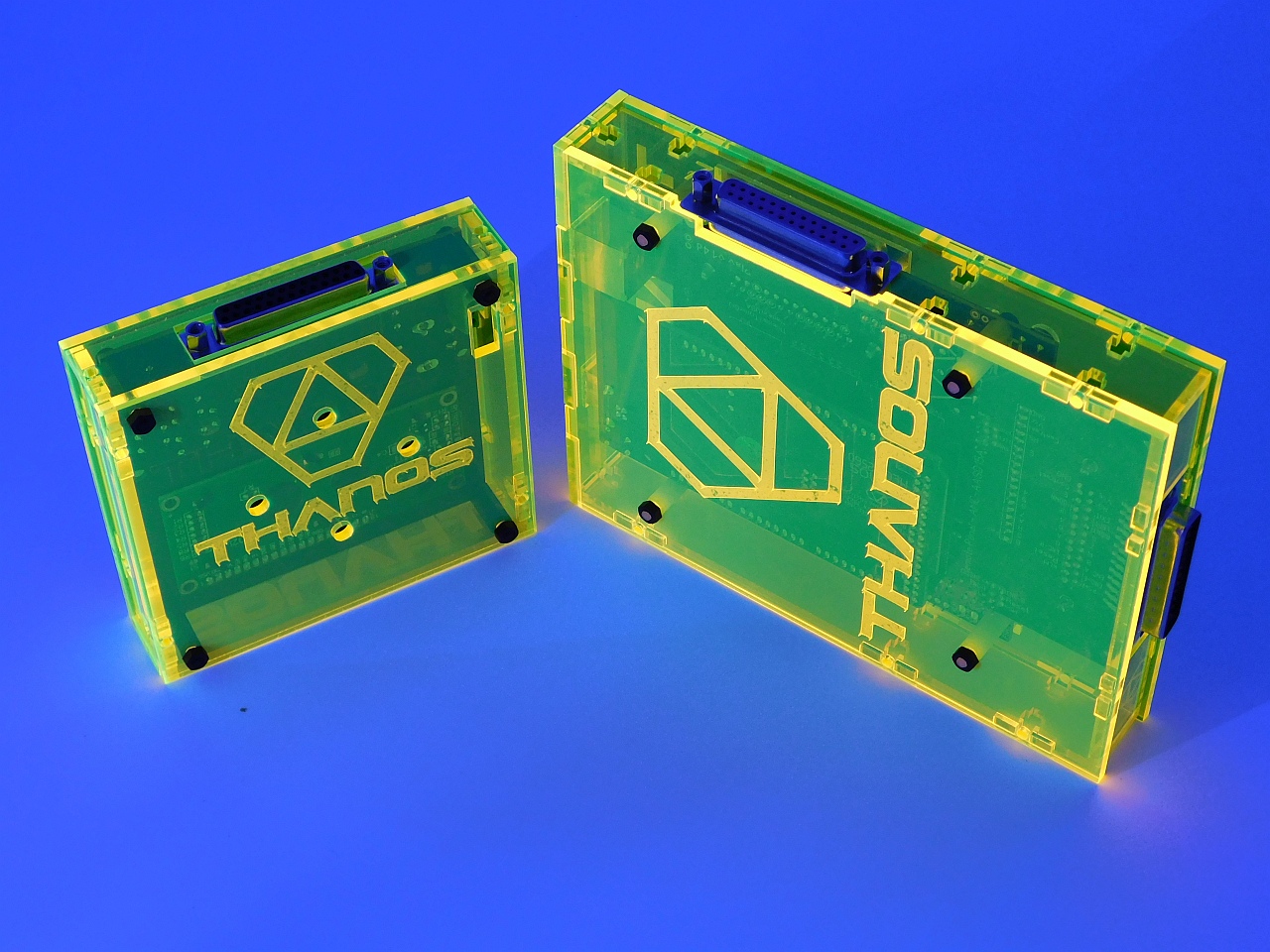

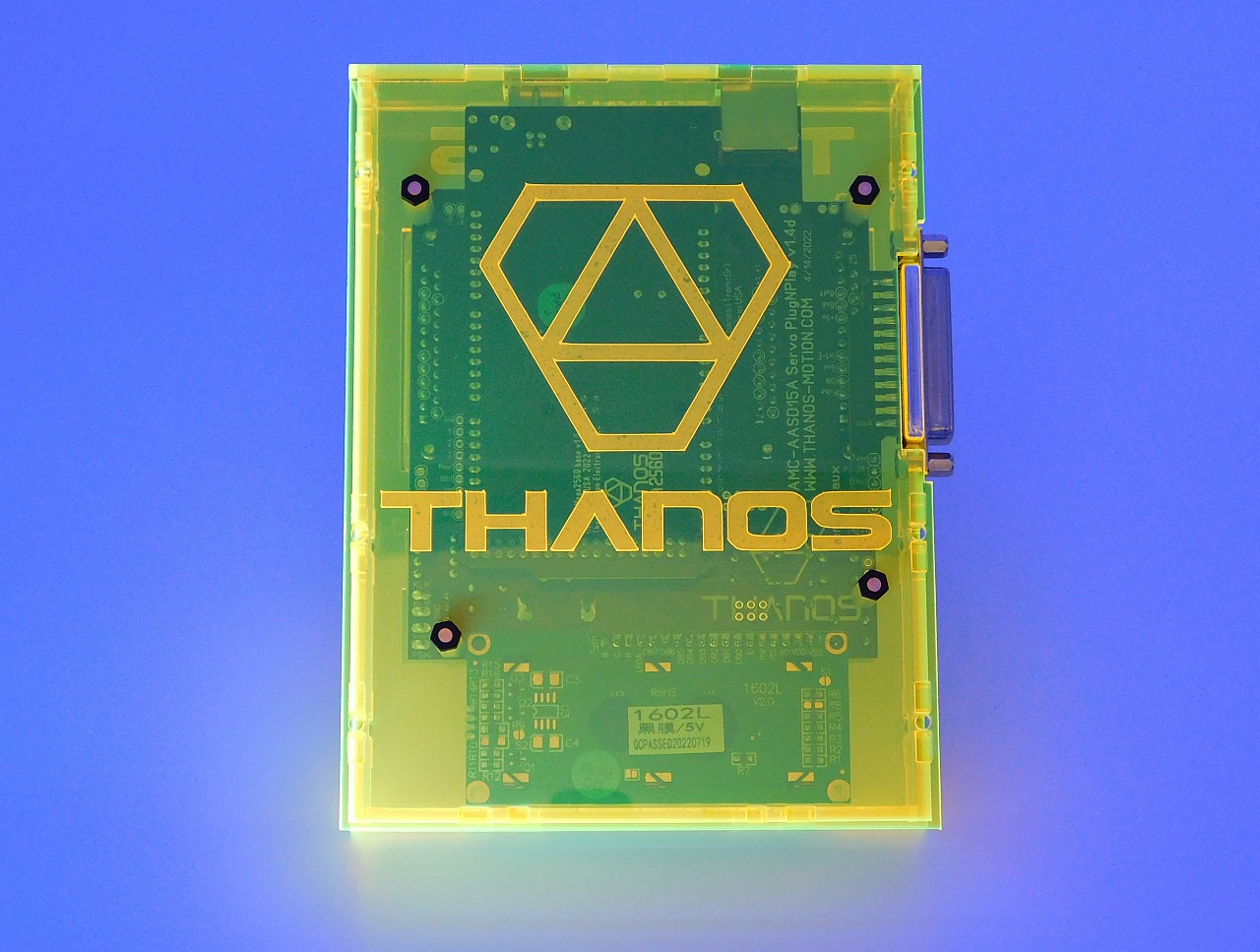

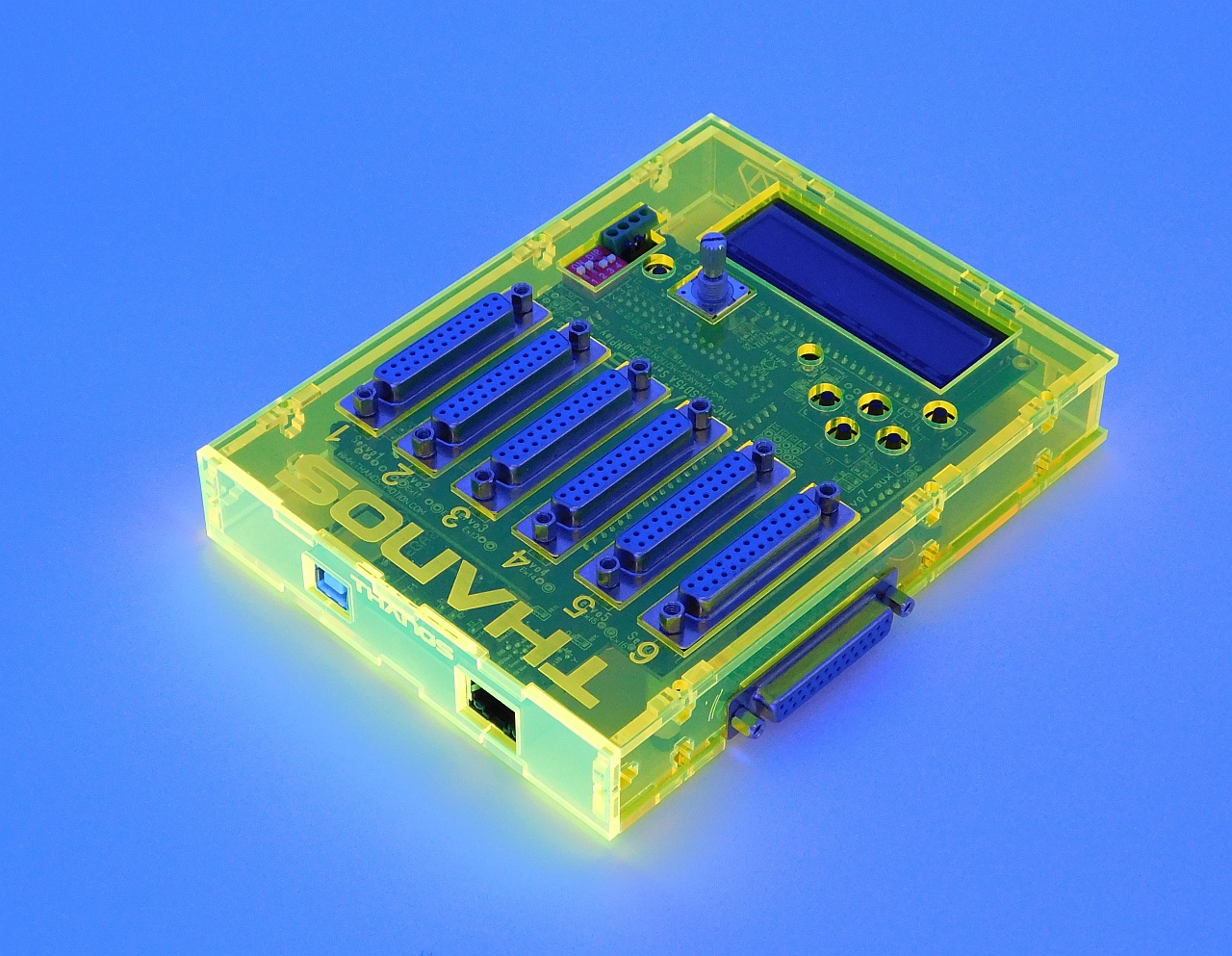

STL files available so you can print your enclosure at home.

Download here

Express flat rate worldwilde shipping. We do our best to deliver you in time !

You can ask us on email when an item on backorder will be back in stock and ready to ship. Use the contact form:

Contact us

SKU: AMC Category:
